5-AG-S Upright Dish Machine

A double duty dish washing machine capable of cleaning 74 racks per hour.

With greater door clearance and the ability to wash taller wares, the 5-AG-S dishwashing machine can multiply your dishwashing capabilities. The high capacity machine also features air-gap fill, dual screening, and two powerful 1 ½ HP pumps.

Contact to Order Get technical support

5-AG-S

Standard Features

  • Cleans 74 racks per hour
  • Water consumption is 1.6 gallons per rack
  • Great Door Clearance at 20 1/2”
  • Top Mount Controls with Auto Start
  • Stainless Steel air gap
  • Quick release spray arms
  • Two Quick service 1 1/2 HP pumps
  • Door safety switch – external prime switches
  • Delime Switch located in the control panel
  • Double Duty Model designed to multiply your dishwashing capability.
  • Dual screen system protects wash pump and wasm arms
  • Two pumps deliver great results
  • Wash sheet pans horizontally with the optional pan rack

5-AG-S

Specifications

Rated Capacities

74 racks per hour

Motor Horsepower

1.5 HP

Water Consumption

3.2 gallons per cycle
12.1 liters per cycle

Temperatures

120 degrees F Min.
49 degrees C Min.

Available Cycle Times

90, 120 and 150 second cycles

5-AG-S

Utilities

Electrical Ratings

  • 115 Volts
  • Single Phase
  • Connect to two supply sources protected by 20 amp breakers.  Each circuit needs (2) # 12  AWG copper wires and a suitable ground, or connect to a single 40 amp breaker protected supply source using  (2)# 8 AWG copper wires and a suitable ground.

Warning: Plumbing and electrical connections should be made by qualified personnel who will observe all the applicable plumbing, sanitary and safety codes and the National Electrical Code. Also, due to an ongoing value analysis program, specifications contained in this catalog are subject to change without notice.

*Manufacturer reserves the right to modify these specifications in compliance with regulatory agencies and manufacturing expediency.

5-AG-S

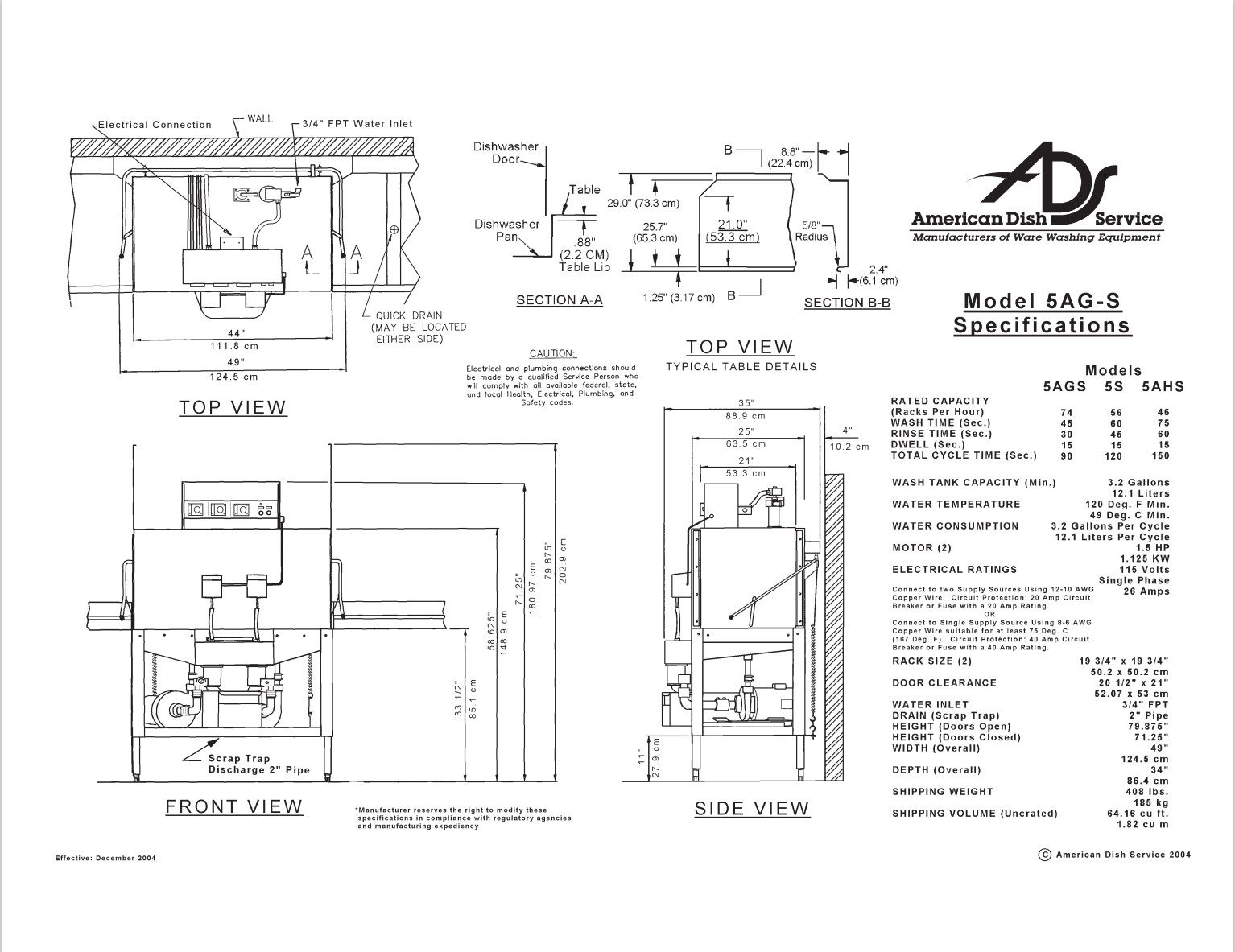

Dimensions

5-AG-S

Options & Accessories

  • Wash Sheet Pans Horizontally with the optional Pan Rack
  • More options coming soon!
