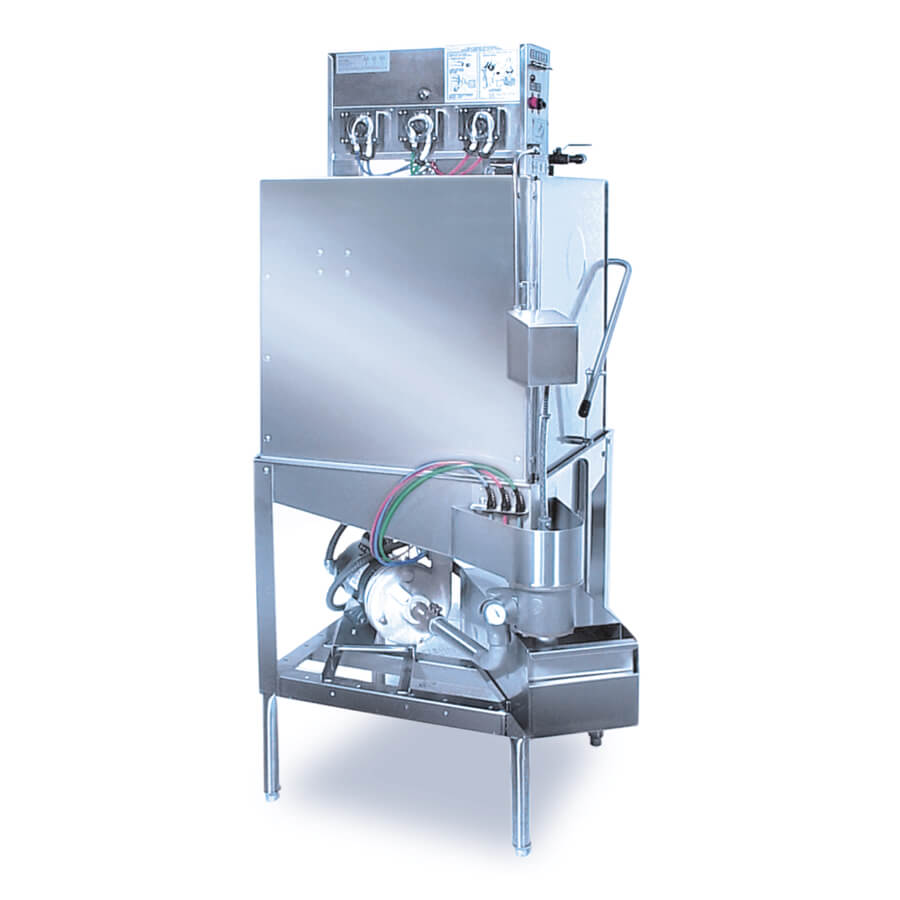

AF/AFC-3D-S Upright Dish Machine

The Serviceable Machine, saves time and money by reducing hand washing.

Great for pizza restaurants, larger door openings wash larger ware.

Contact to Order Get technical support


Standard Features

  • Convertible design
  • Great door clearance 20.5”
  • Quick service 1 1/2 HP pump
  • Quick release spray arms
  • Stainless steel air gap
  • Run indicator light
  • Simple to clean
  • Available with solid chemical dispensing
  • Air Gap Fill – Eliminates the need for check valves and vacuum breakers.
  • 20.5” Door Clearance – Perfect for pizza applications.
  • Diagonal Scrap Trap – Provides easy screen removal in both corner and pass- through models
  • Swift Plumbing Removal – All plumbing is connected using zero-interference Stainless/Terelene Couplers.
  • Quick Service Pump – Pump slides forward providing for easier repair.
  • Dual Screens – Protect intake of pump.
  • Additional Options – Also available with solid chemical dispensing
  • Stainless Steel Spray Bases, Bayonets and Manifold Couplings – Allows for quick release spray arm removal for ease of cleaning

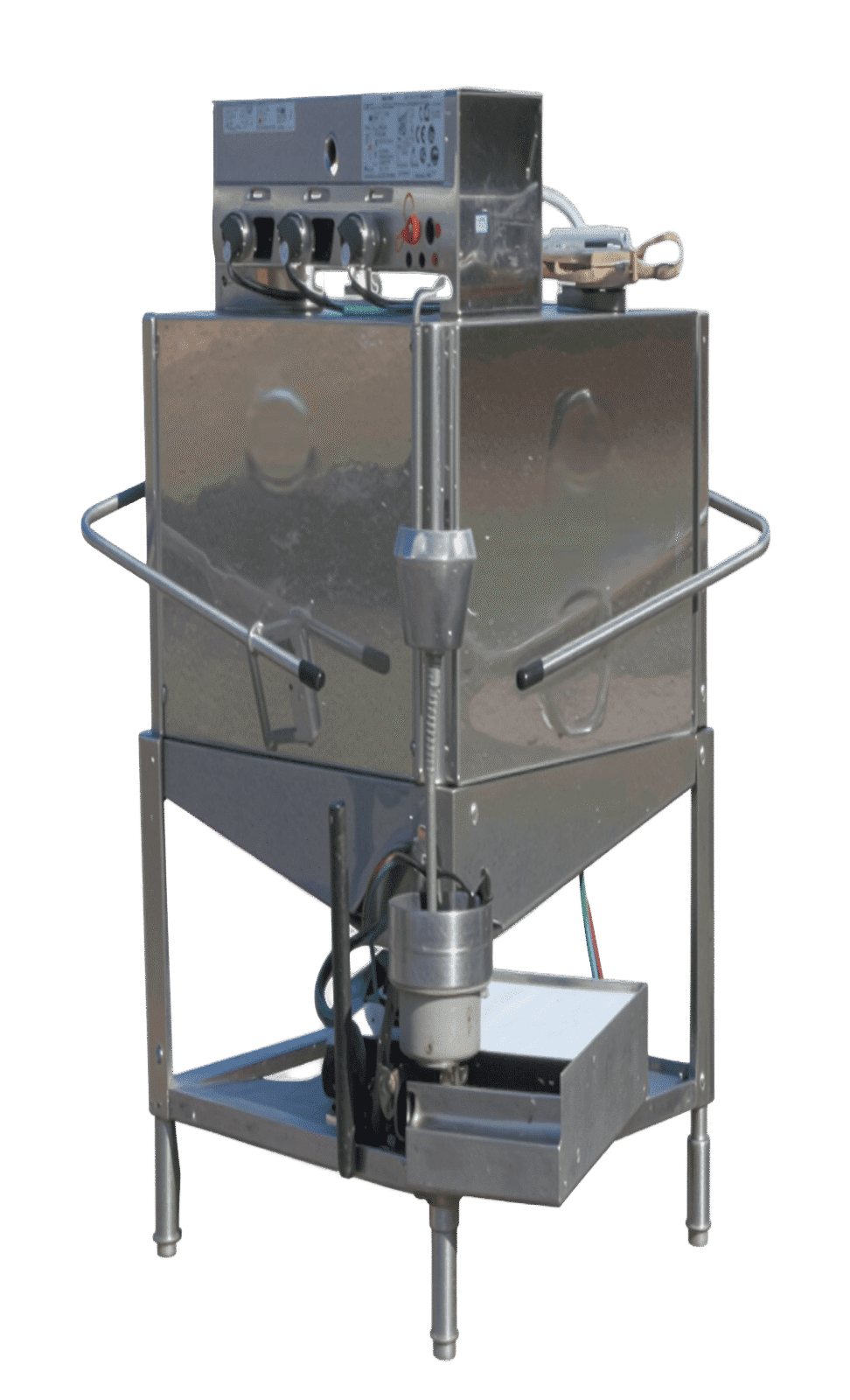

  • AFC-3D-S – Corner outside sump with built-in scrap accumulator

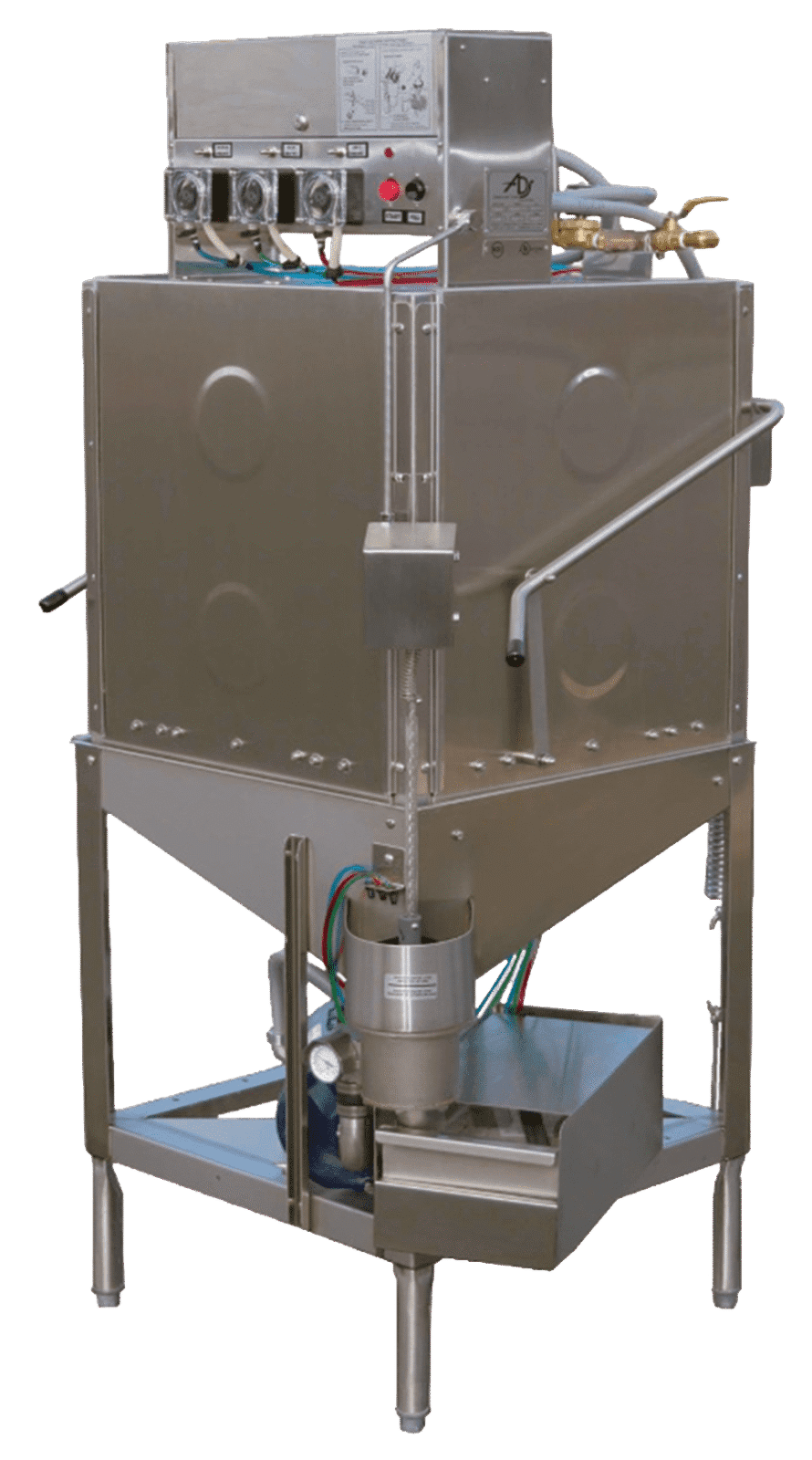

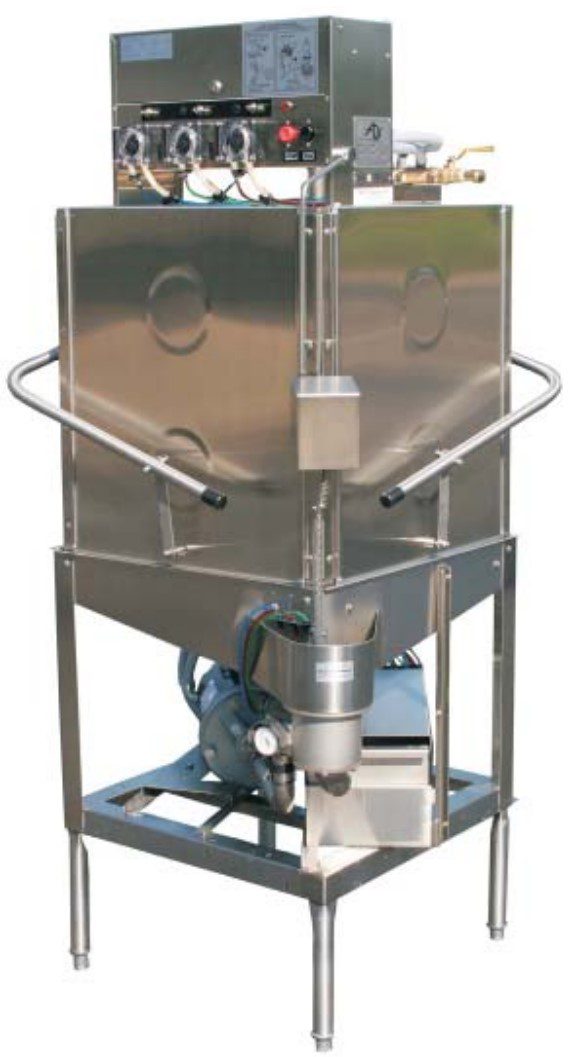

  • AF-3D-S – Pass-thru outside sump with built-in scrap accumulator




Rated Capacity: 37 racks/hour


1.5 HP

Water Consumption

2.2 gallons per cycle or 8.3 liters per cycle

Water Temperatures (Supply)

120 F Min or 49 C Min

Available Cycle Times

90, 120 and 150 second cycles



Electrical Ratings

  • 115 Volts
  • Single Phase

Connect to Supply Source using (2) 10-12 AWG copper wires and a suitable ground. Circuit Protection: 20 AMP. Circuit Breaker or Fuse with a 20 AMP rating.

Caution: Electrical and Plumbing connections must be made by a qualified Service Person who will assure that the installation is in compliance with all available federal, state, and local Health, Electrical, Plumbing, and Safety codes.

*Manufacturer reserves the right to modify specifications in compliance with regulatory agencies and manufacturing expediency.
