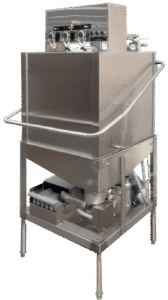

ASL – UPRIGHT DISH MACHINE
Smart design, energy efficient, dish washing machine.
Rated at less than one gallon of water per rack by Energy Star, the ASL delivers sparkling results while saving resources! With our unique single lift door system, auto start feature, available I.R.M.A control system, and high-volume wash pump, you’ll have clean, sanitary dish ware in a snap!
ASL
- ASL BROCHURE
- ADS Trifold Brochure Rev 5.02a English
- ASL/ASL TALL – SPEC SHEET
- ASL/ASL TALL WITH IRMA – SPEC SHEET
- ASL/ASL TALL – INSTALLATION MANUAL
- ASL Operator Machine Maintenance – Video
ASL
Standard Features
- Fast production – 37 racks per hour
- .959 Gallons of Water Used per Rack – Energy Star Certified
- Unique Single Lift Door – One Piece
- Door Clearance – 21″
- Durable 1 1/2 HP Stainless Steel Wash and Rinse Pump
- Chemical Prime Switches on Board
- Automatic Chemical Feed
- 90, 120 or 150 Second Complete Time Cycle
- Dual Pump Screen Protection
- Available with a Built-on Booster Heater
- Built on Scrap Accumulator Keeps Food Soils out of your Drain Lines
- Upper and Lower Spray Arms are Interchangeable, Easily Removed and Clean
- Field Convertible from Pass Thru to Corner Operation
- Available with IRMA, for Precise, Worry-free Operation
ASL
Specifications
Capacities
37, 25, or 12 racks per hour
Motor Horsepower
1.5 HP
Water Consumption
.959 Gal Per Cycle or 3.63 L Per Cycle
Available Cycle Times
90, 120 and 150 cycle times
Temperatures
(NSF) 120 F Min. or 49 C Min.
ASL
Utilities
Electrical Ratings
- 115 Vac
- 20amp breaker
- 50/60Hz
- 1Phase
- Connect to Supply Source using (2) 10-12 AWG copper wires and a suitable ground using non-time delay fuse of 20 amp rating or 20 amp circuit breaker.
Warning: Plumbing and electrical connections should be made by qualified personnel who will observe all the applicable plumbing, sanitary and safety codes and the National Electrical Code. Also, due to an ongoing value analysis program, specifications contained in this catalog are subject to change without notice.
*Manufacturer reserves the right to modify these specifications in compliance with regulatory agencies and manufacturing expediency.
ASL
Dimensions
ASL
Options & Accessories
- I.R.M.A takes the guesswork out of repair & maintenance with modular design, remote monitoring, & no squeeze tubes to change! IRMA
- Not enough hot water? Order a DASL with built on Hubbell booster. ASL
- Have sheet pans to wash? No problem! Sheet Pan Rack
- Need for precise chemical control and options for different cycle lengths? Low water pressure woes? Try NoKam
Looking for a specific part or accessory?
Creative, consistent engineering puts mix-and-match parts at the forefront — so customers won’t have to wait for an oddball part.
Choose Durable Commercial Dish Machines
Install the best commercial dish machines the market has to offer.
