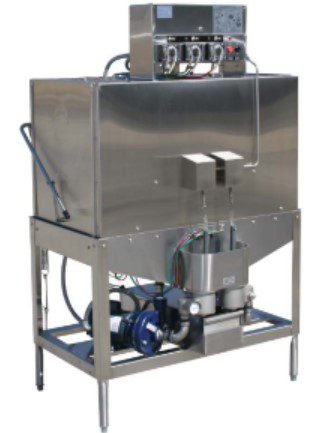

5-AG-ES Upright Dish Machine

High capacity green dishwashing machine.

Rated at less than 1 gallon per rack by Energy Star, the 5-AG-ES dishwashing machine has the capability you need to clean efficiently and effectively. With quick release spray arms, great door clearance, and two high capacity pumps, you’ll have the power to save on time and effort.

Contact to Order Get technical support


Standard Features

  • Cleans 74 racks per hour
  • Water consumption of LESS than 1 gallon per rack
  • Great door clearance at 20 1/2”
  • Top mount controls with auto start
  • Stainless steel air gap
  • Quick release spray arms
  • Dual screen system protect pumps and wash arms
  • Door safety switch – external prime switches
  • Delime switch located in the control panel
  • Double Duty Model doubles your production
  • Two powerful 1 HP pumps deliver sparkling results
  • Wash Sheet Pans Horizontally with the optional pan rack



Rated Capacities

74 racks per hour

Motor Horsepower

1 HP x 2

Water Consumption

1.78 gallons per cycle
6.74 liters per cycle


120 degrees F Min.
49 degrees C Min.

Available Cycle Times

90, 120 and 150 seconds



Electrical Ratings

  • 115 Volts
  • Single Phase
  • Dual circuit supply – (2) 15 amp breakers with (2) # 10-12 AWG wires ands a suitable ground for each circuit.
  • Single circuit supply: (1) 30 amp breaker with (2) # 10 AWG wires and a suitable ground.

Warning: Plumbing and electrical connections should be made by qualified personnel who will observe all the applicable plumbing, sanitary and safety codes and the National Electrical Code. Also, due to an ongoing value analysis program, specifications contained in this catalog are subject to change without notice.

*Manufacturer reserves the right to modify these specifications in compliance with regulatory agencies and manufacturing expediency.




Options & Accessories

  • List coming soon!
